HDPE Geomembrane Technical Parameter (GB standard) |
| Spec
Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
| Tensile Properties
(each direction) (≥)
.yield strength
.break strength
.yield elongation
.break elongation |
7KN/m
10KN/m
--
600%
|
10KN/m
15KN/m
--
600%
|
13KN/m
20KN/m
11%
600%
|
16KN/m
25KN/m
11%
600%
|
20KN/m
30KN/m
11%
600%
|
26KN/m
40KN/m
11%
600%
|
33KN/m
50KN/m
11%
600%
|
| Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
| Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
| Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
| Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
| Oxidative Induction Time(OIT)
Standare OIT(≥) |
60min.
|
60min.
|
60min.
|
60min.
|
60min.
|
60min.
| |
Our Geomembrane is fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, smooth geomembrane HDPE Liner has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.
Geomembrane is the low permeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment and water containment applications. smooth geomembrane HDPE liner is made of finest quality high density polyethylene HDPE with specially formulated, virgin polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which makes our smooth geomembrane HDPE liner with excellent resistance to UV radiation and is suitable for exposed conditions.
Features:
- Excellent chemical resistance.
- Outstanding stress crack capacity.
- Lowest permeability.
- Excellent UV resistance.
- Stable low temperature embrittlement resistance.
- Complete width and thickness specifications.
- Cost effective.
- Proven performance.
- Fast deployment.
- Easy transportation.
- Meet or exceed all aspects of GRI GM13.
Geomembrane Liner Application

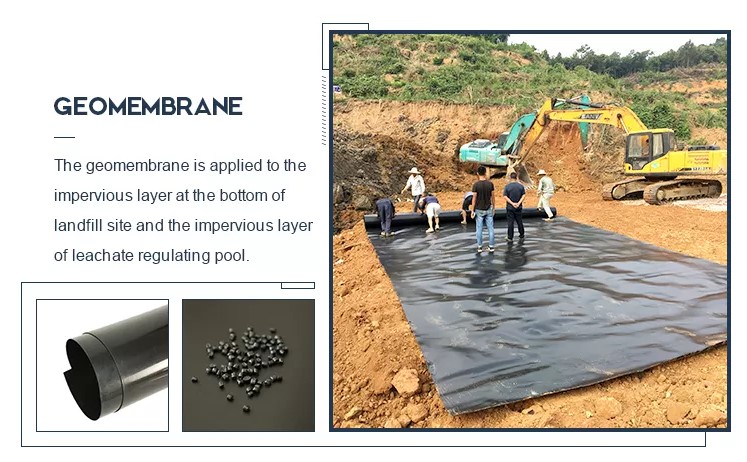

- Environmental protection, environmental hygiene (such as garbage landfill site, treatment of sewage, containment of poisonous or harmful wastes, hazardous warehouse, industry wastes, construction & explosive rubbish, etc).
- Water conservancy (such as waterproofing, stopping up leak, reinforcement for lake, river, channels, tunnels, dams and reservoirs; vertical wall with core, slope protection, etc.
- Municipal engineering (expressway, subway, underground engineering of building; and liner of roof pool, roof garden's waterproofing, sewage channel, etc)
- Garden (backing & slope protection of artificial lake, pool, golf course's pond.
- Petrochemicals (liner secondary lining of chemical reeaction tank and deposit tank from chemical plant & refinery; seepage control of oil tank from gas station
- Traffic facilities (highway foundation reinforcement, culvert stopping up leak
- Agriculture (stolling up leak for reservoirs, drinking pools, storage ponds and irrigation system.

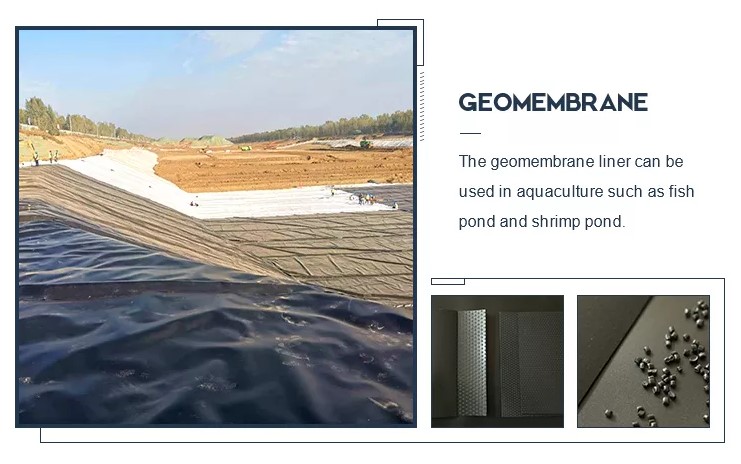

- Aquaculture industry (seepage control for sea cucumber circle's slope protection, liner of fish pool & shrimp pond.
- Seepage, corrosion, leaks control & reinforcement for other facility, leachate collection.
-
Construction Method
1. The slope shall be laid in order from top to bottom. Don't pull it too tight.
2. Tow adjacent longitudinal joints should not be in a horizontal line, should bestaggered more than 1m each other.
3. Longitudinal joints should be more than 1.50m away from the dam foot and bending foot, and should be located on the plane.
4. When the slope is laid, the direction of spreading film should be basically parallel to the slope line.
5. The construction, first of all to use small diameter sand or clay levelingbase, and then laid the geomembrane. The geomembrane should not be stretched too tight, and the part of the soil bured at both ends is corrugated. A transitional layer of about 10cm is laid on the geomembrane with sand or clay.
FAQ
1.Are you manufacturer or trade company?
We Zhonglu are a professional geosynthetic products manufacture, we will provide you with top-class service.
2. What's the order process?
a.Inquiry--- The more detailed information you provide, the more accurate product we could provide you.
b. Quotation---Resonable quotation with clear specifications.
c. Sample confirmation---Sample could be sent before the final ordering.
d. T/T 30% in advanced, and the balance could be paid before shipment.
e. Production---Mass production.
f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.
3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
4. How does your factory do regarding quality control?
"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.
5.What's the payment method you accept?
T/T, L/C,D/P etc.
