Bentonite Geosynthetics Clay Liner Waterproofing Gcl

  • 1
  • 2

Brand Name : zhongloo

Model Number : ZL-FST

Place of Origin : China

MOQ : 1000 Per square meter

Price : USD 0.52-1.59 per square meter

Payment Terms : L/C, T/T, D/P

Supply Ability : 10000 square meter

Delivery Time : 8-12 work days

Packaging Details : Customer's Request

Product Name : Bentonite Geosynthetic Clay Liner

Usage : Waterproof Projects

Free sample : Available

Color : White

Application : Landfill

Contact Now

Bentonite Geosynthetics Clay Liner Waterproofing Gcl

Product Description

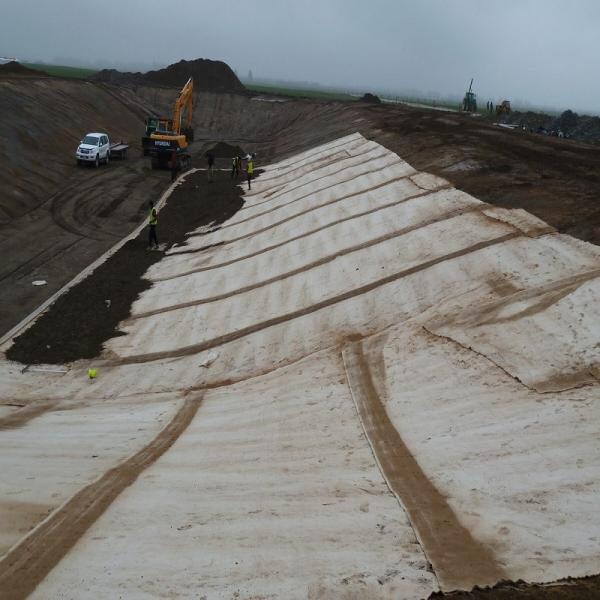

Filled between specially made composite geotextiles and non-woven fabrics with high expansion sodium based bentonite, the bentonite anti-seepage pad made by needle punching method can form many small fiber spaces, preventing bentonite particles from flowing in one direction. When encountering water, a uniform and high-density adhesive like waterproof layer is formed inside the pad, effectively preventing water leakage.

Technical Data:

No.

Item

Value

GCL-NP

Standard

1

GCL swell index, mL/2g

≥24

JG/T 193-2006

2

Methylene blue index, g/100g

≥30

JG/T 193-2006

3

Tensile strength, N/100mm

≥600

JG/T 193-2006

4

Elongation at break, %

≥10

JG/T 193-2006

5

Peel strength between non-woven geotextile and woven geotextile, N/100mm

≥40

JG/T 193-2006

6

Water permeability, m/s

≤5.0x10-11

JG/T 193-2006

7

Hydrostatic preserve

0.4MPa,1h,no leakage

JG/T 193-2006

8

Fluid loss,mL

≤18

JG/T 193-2006

9

GCL durability, mL/2g

≥20

JG/T 193-2006



Features Bentonite Mat Clay Liners
1. Improved leakage performance
2. Permanent waterproof performance
3. Simple construction and short time limit for a project.
4. Not influenced by air temperature.
5. A kind of green material and good to environmental protection.
6. More versatile than compacted clay
7. Increased airspace and liner efficiency
